Technical Information
Disclaimer
The Technical Specifications contained here are generalized due to pending Patens and other protection instruments currently being applied for. For more detailed specifications please contact Lawrence Rambo at Ramtech Inc directly.
Lawrence Rambo
rambo@ramtech.net
352-222-9222

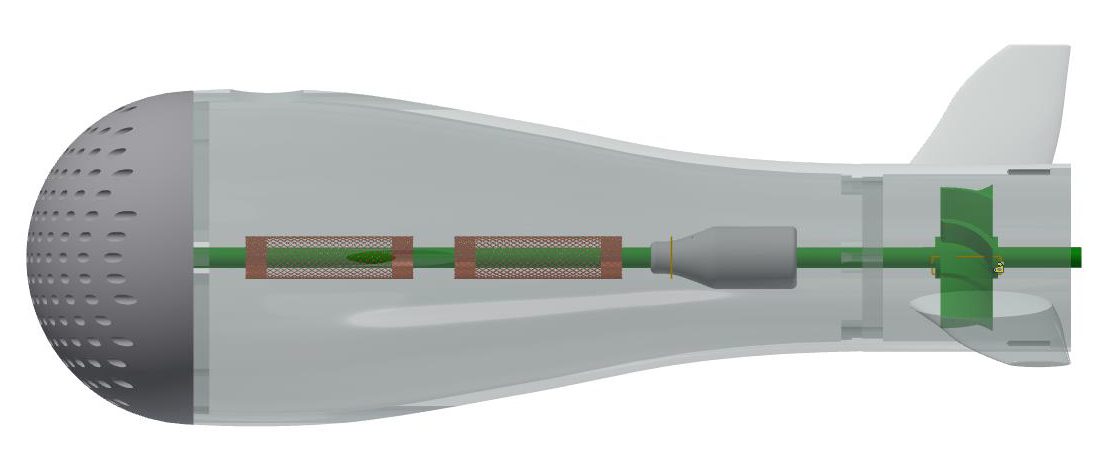

System Overview
Introduction
A Short Video Showing the Basic Features of the HydroRam

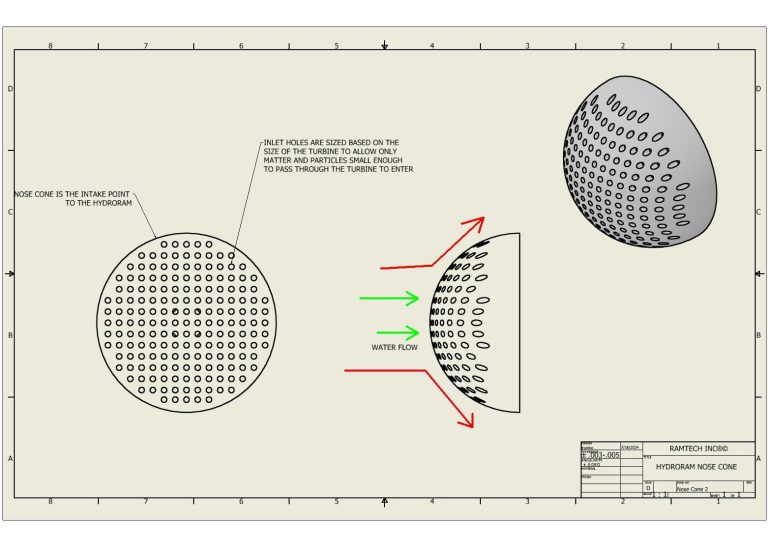

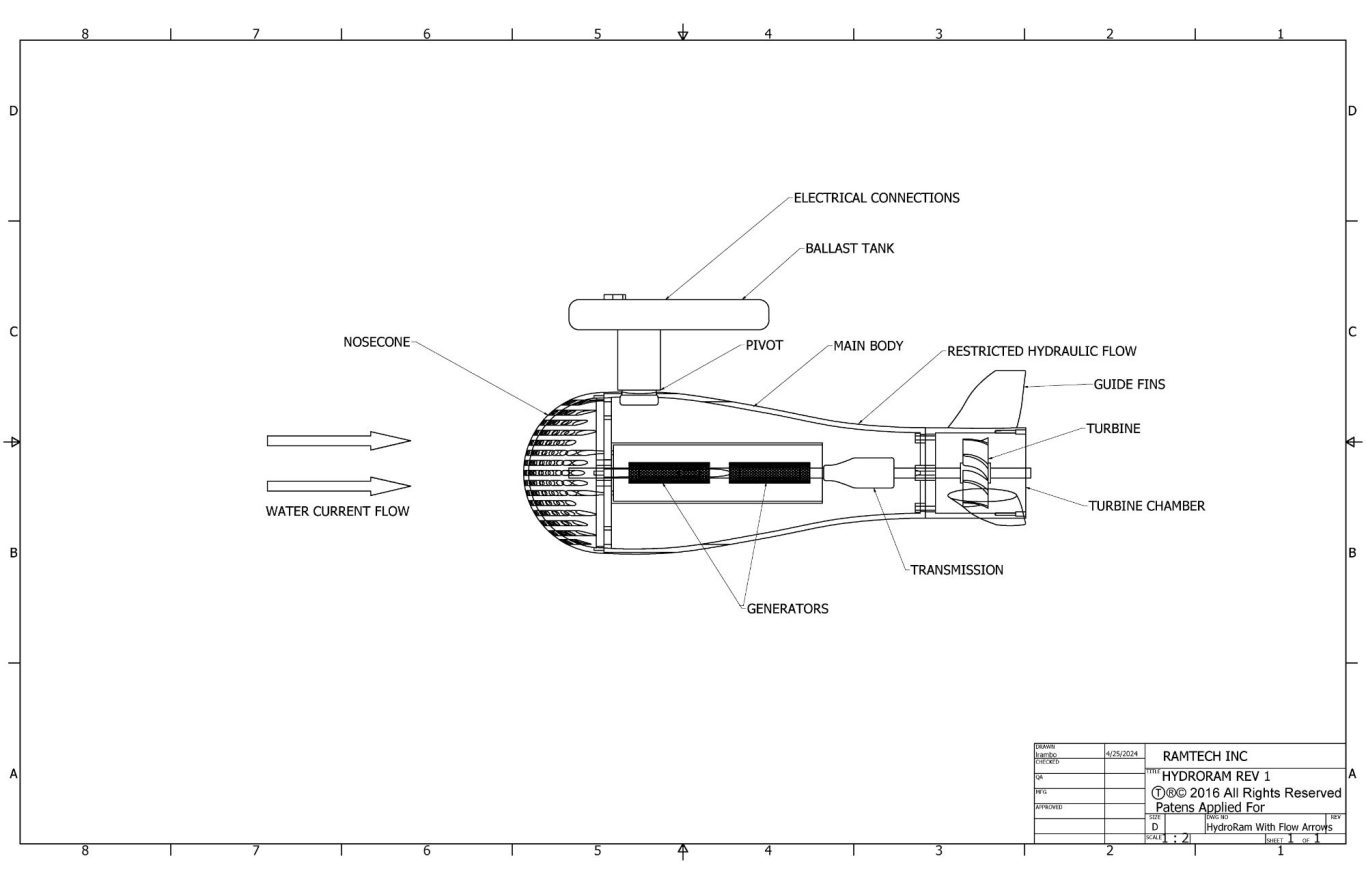

NOSE CONE
The first component of the Hydroram is the Nose Cone. The Nose cone is designed as a simi sphere with inlet holes sized to deflect any particles or matter to large to pass through the Turbine. This not only keeps the Turbine from being Jammed but protects sea life from being pulverized.

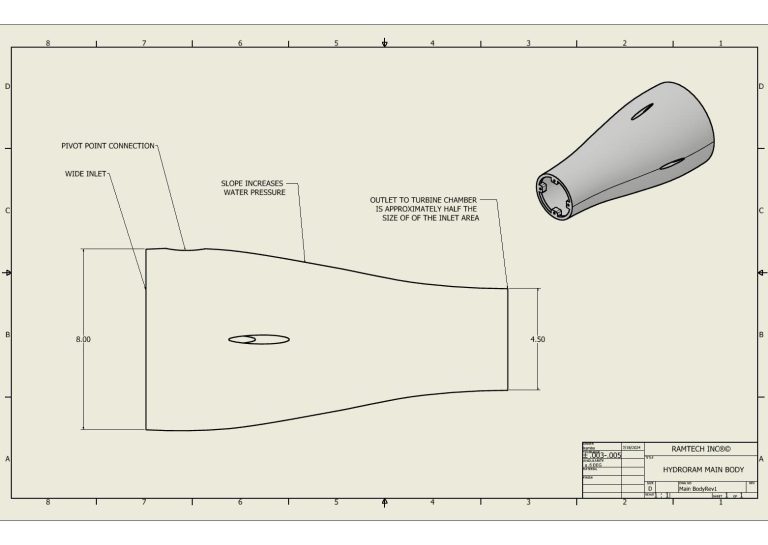

MAIN BODY
The main Body or Chamber of the Hydroram is designed like a wind sock which has two functions. The first is so that it will "Windsock" into the current maximizing the water flow through the chamber and the second is to force the water through a smaller area to increse the power of the flow. As water is a hydraulic medium (it can't be compressed like air) the constriction causes the turbine to turn at maximum speed even in a relatively weak current.

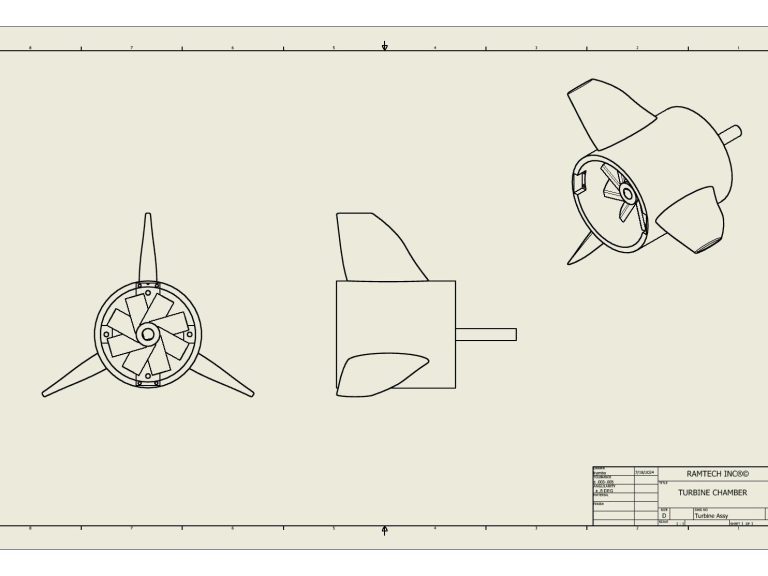

Turbine Chamber
The Turbine Chamber not only houses the Turbine but has fins to further help with the wind sock effect to steer the Nose Cone into the available current and maximize the water flow though the main body.

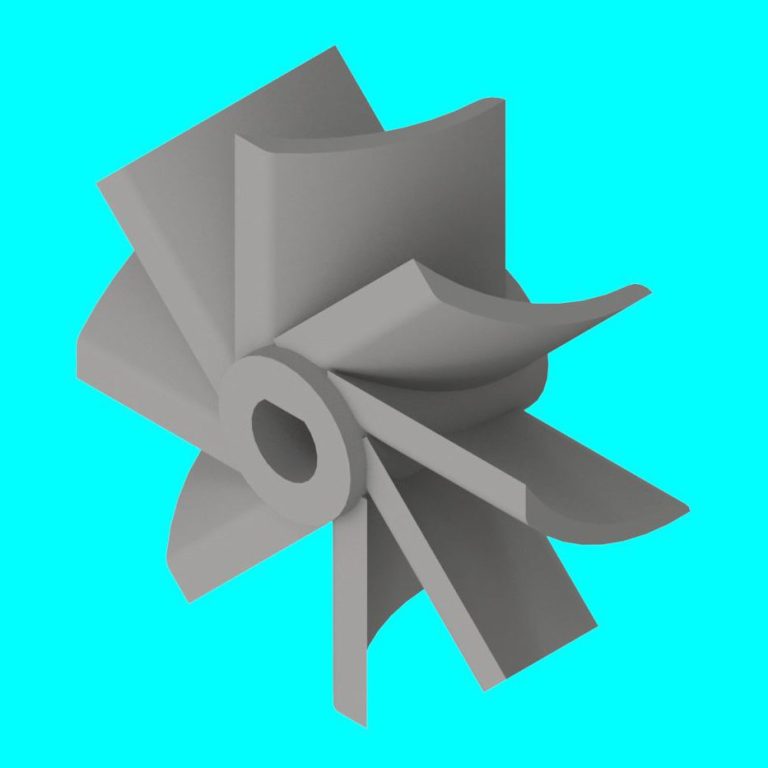

Turbine
The Turbine for the HydroRam is a
Advanced twisted blade turbine
based on the original Kaplan Design.
Paten Applied For ©®™ 2016.

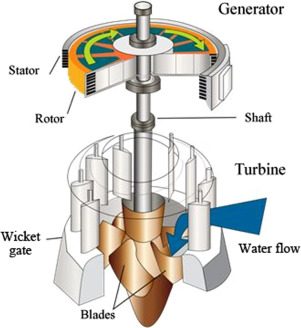

Kaplan Turbine

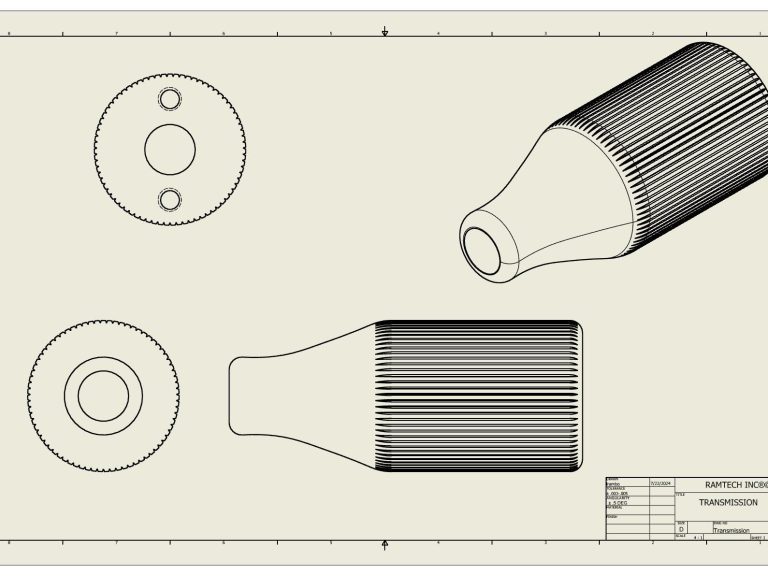

Automatic Transmission
Utilizing a computerized automatic transmission in
the drive chain maximizes the Generator RPMs and in turn the power output even in weak currents.
The transmission is to be incorporated between the
Turbine and the Generator's

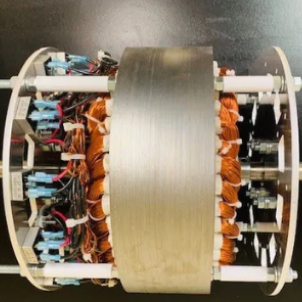

Generator
The HydroRam will utilize Infinity Control's new 9 Phase Generator. Originally designed for applications such as wind turbines the Infinity Generator is an advanced Generator design that is incredibly more efficient than conventional generators. The Infinity Generator can be "daisy chained " in groups of as many as twelve units in one HydroRam
Learn more about Infinity Controls 9 Phase
I Generator here.
This Video introduces the future of Power Generation
the Infinity Controls I Generator.
Patents Applied for 2024
